Customization
HYBRID+ is customizable to meet your measurement/observation needs. We can propose a standard configuration with optional functions or, if necessary, we can design a custom-made unit for your specific application.
Stages
We propose a stage that best fits the need of your sample and application.
Manual stage
![](/en/products/microscope/optelics_hybrid/hardware/img/stage_im01.jpg)
Manual XY stage for basic model
Motorized stage
![](/en/products/microscope/optelics_hybrid/hardware/img/stage_im02.jpg)
The motorized stage is useful for performing image stitching and the continuous measurement of multiple points. It enhances the efficiency of operation.
Motorized stage with a measuring scale
![](/en/products/microscope/optelics_hybrid/hardware/img/stage_im02.jpg)
HYBRID+ has introduced a motorized stage with a measuring scale to enhance positioning accuracy and repeatablity. It allows users to perform image stitching with high reliability.
Motorized X-θ stage
![](/en/products/microscope/optelics_hybrid/hardware/img/stage_im03.jpg)
HYBRID+ offers a motorized X-θ stage for your need to observe a sample while rotating it. It is useful, for example, when you have a cylindrically shaped sample.
Sample holders
We offer sample holders to help install HYBRID+ smoothly and keep it securely positioned.

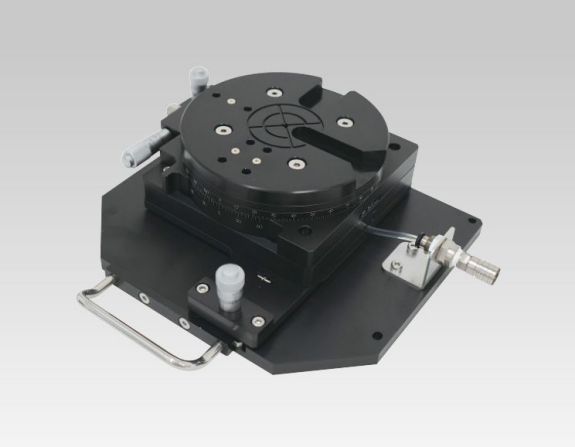

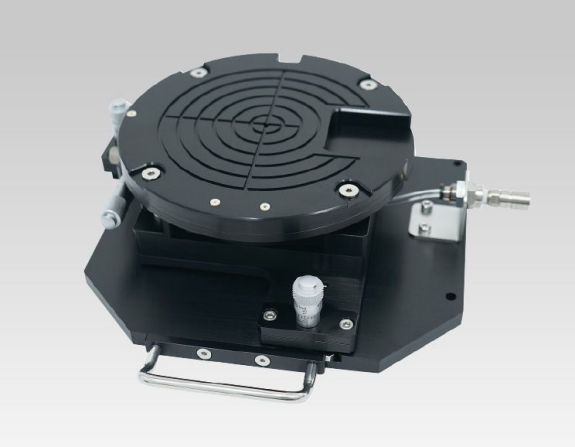

Wafer holder
The wafer holder holds a wafer with vacuum force and maintains its flatness.
![](/en/products/microscope/optelics_hybrid/hardware/img/stage_im04.jpg)
![](/en/products/microscope/optelics_hybrid/hardware/img/stage_im05.jpg)
![](/en/products/microscope/optelics_hybrid/hardware/img/stage_im06.jpg)
Electrostatic holder
The electrostatic holder holds a sample with electrostatic force. It is useful for holding a thin and soft sample such as paper, film, and metal foil.
![](/en/products/microscope/optelics_hybrid/hardware/img/stage_im07.jpg)
Tilt holder
The tilt holder is a holder with a mechanism to tilt a sample about X and Y axes for positioning correction.
![](/en/products/microscope/optelics_hybrid/hardware/img/stage_im08.jpg)
Large stages, special stages
We offer various types of stages to meet your needs about stage size, stroke, sample holder, automated transfer and others.
![](/en/products/microscope/optelics_hybrid/hardware/img/stage_im09.jpg)
Gate pier type
![](/en/products/microscope/optelics_hybrid/hardware/img/stage_im10.jpg)
Ganty type
