Shown below is an example of the questionnaire HYBRID+ uses for diagnotic analysis. HYBRID+ has a function that provides an optimal setting of measurement based on your answers to the questions about sample information and accuracy requirements. You can save the result as a diagnostic card.

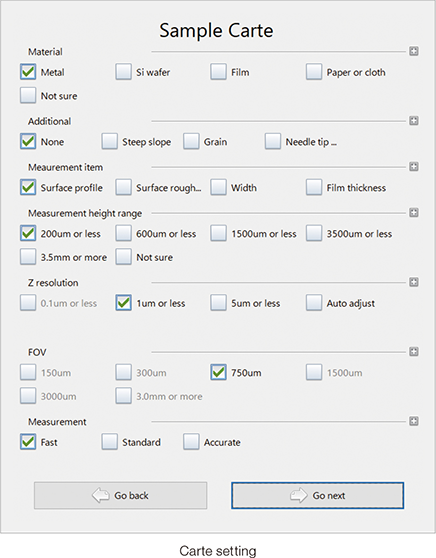

Carte setting

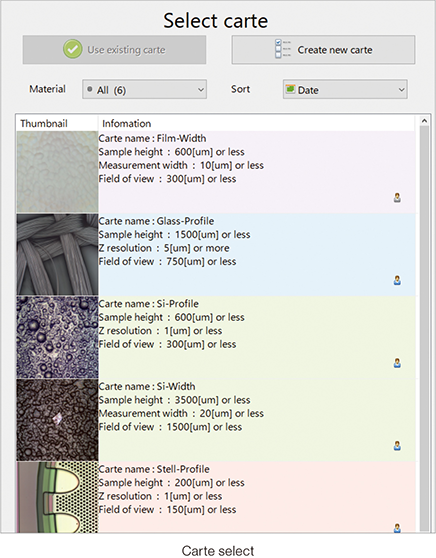

Carte select
Applications

Training of beginners

HYBRID+ selects the best condition of measurement for your sample. You can learn measurement techniques smoothly.

A tool with many users

It is easy for anyone to start performing measurement because you can use the optimal setting with ease.

Performing the same task with different samples

You can create a diagnostic card for each sample and use it each time by simply selecting it.
