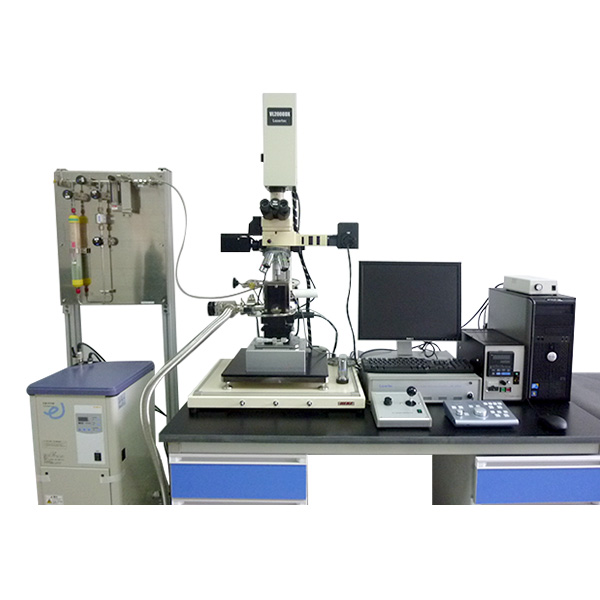

In-Situ Observation at Ultra High Temperature Confocal Scanning Laser Microscope

VL2000DX-SVF17SP

NEW
VL2000DX-SVF17SP

This microscope system is distributed by Yonekura Manufacturing Co., Ltd. Lasertec is the original equipment manufacturer (OEM) of the camera head furnished on this system.

Features

  • Confocal optics enables the observation of samples in moving images at high magnification and high contrast without interference of high intensity radiant light at high temperatures.
  • Sample temperatures can be controlled between -100 and 1800 degrees Celsius.
  • Observation up to 3000x magnification is possible (on a 21-inch monitor).
  • The deferential interference function (optional) enables visualization of fine surface asperities.
  • High-resolution imaging by 405nm violet laser
  • 10-hour video recording and replaying

Applications

  • Moving image observation of samples such as steel, metals, ceramics, other materials and compound semiconductor wafers at extremely high temperatures
  • Moving image observation of various materials under heating/tensile tests
  • 3D analysis of various sample surfaces

UHT observation

A moving image of carbon steel (phase transformation [1])

Behavioral observation of α-γ phase transformation of carbon steel
  • *Click the image and you can observe the moving image
  • *Video images are playing faster than actual speed.

A moving image of carbon steel (phase transformation [2])

Behavioral observation of γ-α phase transformation of carbon steel
  • *Click the image and you can observe the moving image
  • *Video images are playing faster than actual speed.
